1490nm CWDM Fiber Channel Transceiver , Compatible Juniper Optical Fiber Module

Brand Name : OEM
Model Number : CWDM-SFP10G47-20
Certification : CE,ROHS,FCC
Place of Origin : China
MOQ : 1pcs
Payment Terms : T/T, Western Union
Supply Ability : 100PCS Per Day
Delivery Time : 3-5 Working Days
Packaging Details : Blister Packaging
Price : Negotiable
Wavelength : 1490nm
Data : 10Gbs
Distance : 20KM
Package : SFP
Source : CWDM DFB
Power dissipation : < 1.5W
Contact Now

1490nm CWDM Fiber Channel Transceiver , Compatible Juniper Optical Fiber Module


Full 18 channel as cwdm for

1270nm 1290nm 1310nm 1330nm 1350nm 1370nm 1390nm

1410nm 1430nm 1450nm 1470nm

1490nm 1510nm 1530nm 1550nm 1570nm 1590nm 1610nm


Production Feature

  • Hot-pluggable SFP+ footprint
  • Up to 10.3Gb/s bi-directional data links
  • Power dissipation < 1.5W
  • RoHS-6 compliant (lead-free)
  • Commercial temperature range -5°C to 75°C
  • Single 3.3V power supply
  • link length up to 20km on 9/125mm SMF at 10 Gb/S
  • CWDM DFB laser transmitter
  • Receiver limiting electrical interface
  • Duplex LC connector
  • Built-in digital diagnostic functions DDM

Product Details

Item No.CW-SFP+49-20Vendor NameHilink
Form TypeSFP+Max Data Rate10Gbps
WavelengthCWDMMax Cable Distance20KM
InterfaceLC duplexOptical ComponentsDFB CWDM
Cable TypeSMFDOM SupportYes
TX Power-6~1dBmReceiver Sensitivity<-15dBm
Commercial Temperature Range0 to 70°C (32 to 158°F)HTS-Harmonized Code8517706000

Application


♦ 10GBASE-LR at 10.3125Gbps

♦ 10GBASE-LW at 9.953Gbps

♦ CWDM system with CWDM MUX DEMUX


10G CWDM Transceiver

CWDM XFP (10G)
CWDM XFP LR10G(1270-1610nm)10kmCWDM XFP0~70℃
CWDM XFP ER10G(1470-1610nm)40kmCWDM XFP0~70℃
CWDM XFP ZR10G(1470-1610nm)80kmCWDM XFP0~70℃
CWDM SFP+ (10G)
CWDM SFP+(10G) LR10G(1270-1610nm)10kmCWDM SFP+0~70℃
CWDM SFP+ ER10G(1470-1610nm)40kmCWDM SFP+0~70℃
CWDM SFP+ ZR10G(1470-1610nm)80kmCWDM SFP+0~70℃
CWDM Xenpak (10G)
CWDM Xenpak ER10G1470~1610nm40kmXenpak0~70℃
CWDM Xenpak ZR10G1470~1610nm80kmXenpak0~70℃
CWDM X2 (10G)
CWDM X2-ERC10G1470~1610nm40kmX20~70℃
CWDM X2-ZRC10G1470~1610nm80kmX20~70℃



Hilink AdvantageS

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2 Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel,Mikrotik, Juniper etc

4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.

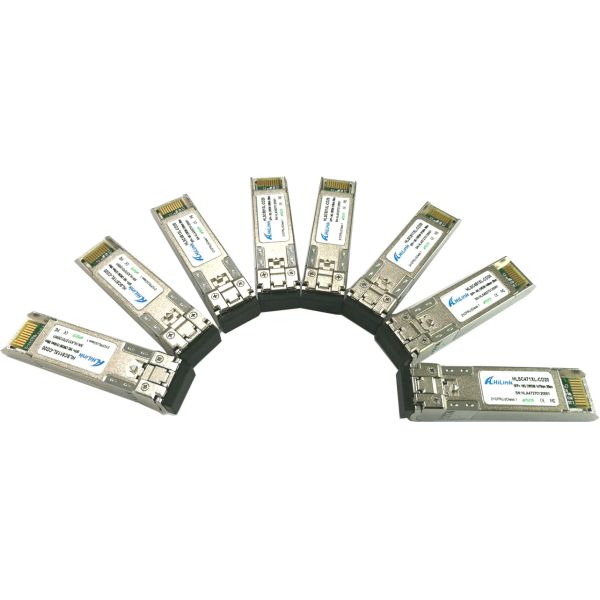

Product Show
